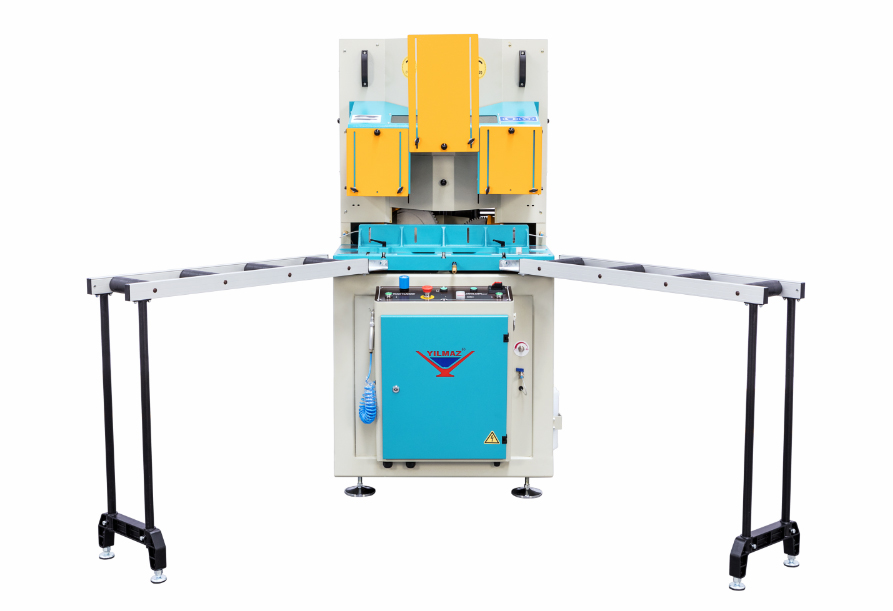

VK 420
V Cutting & 90° End Notching Machine

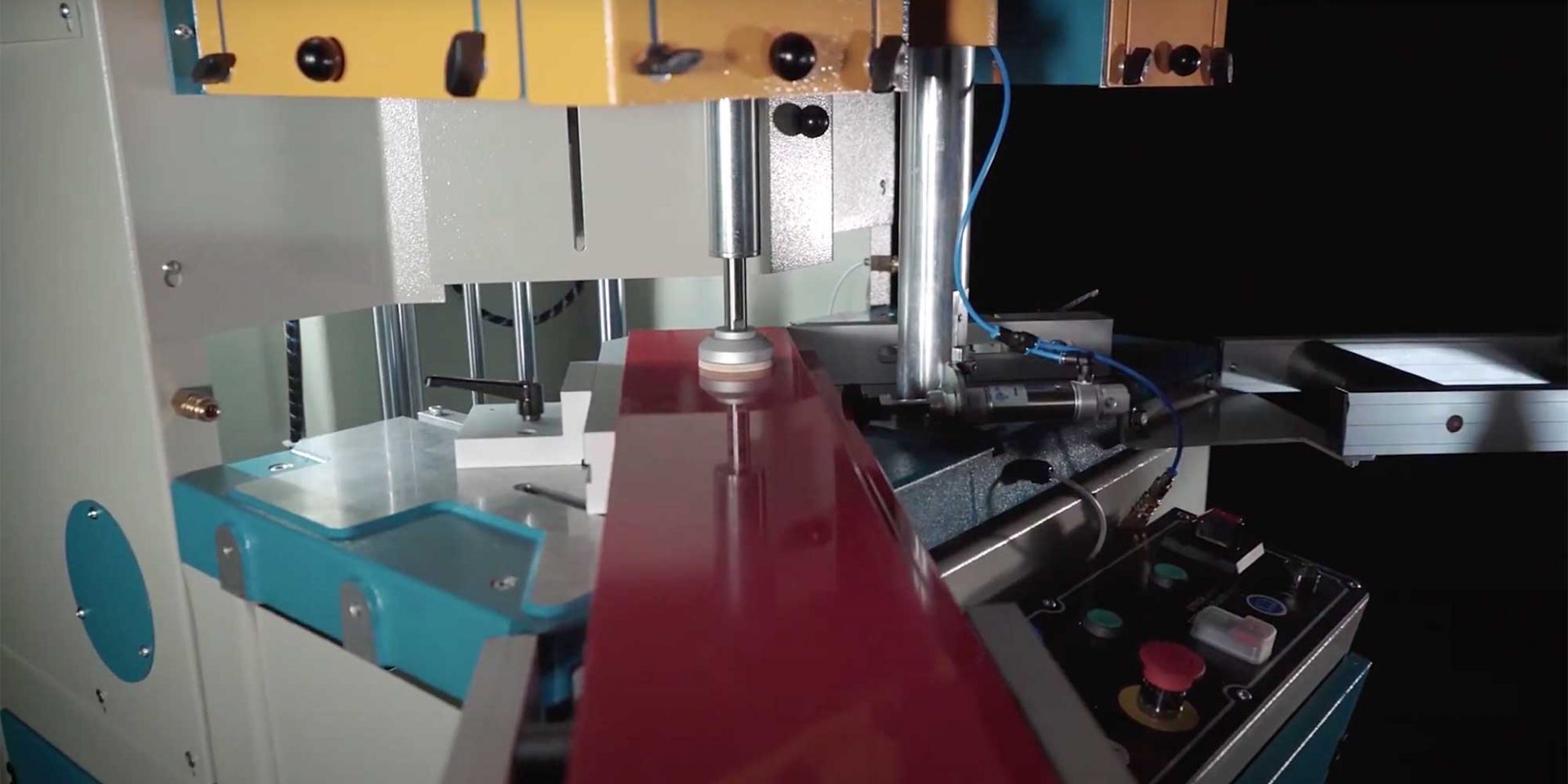

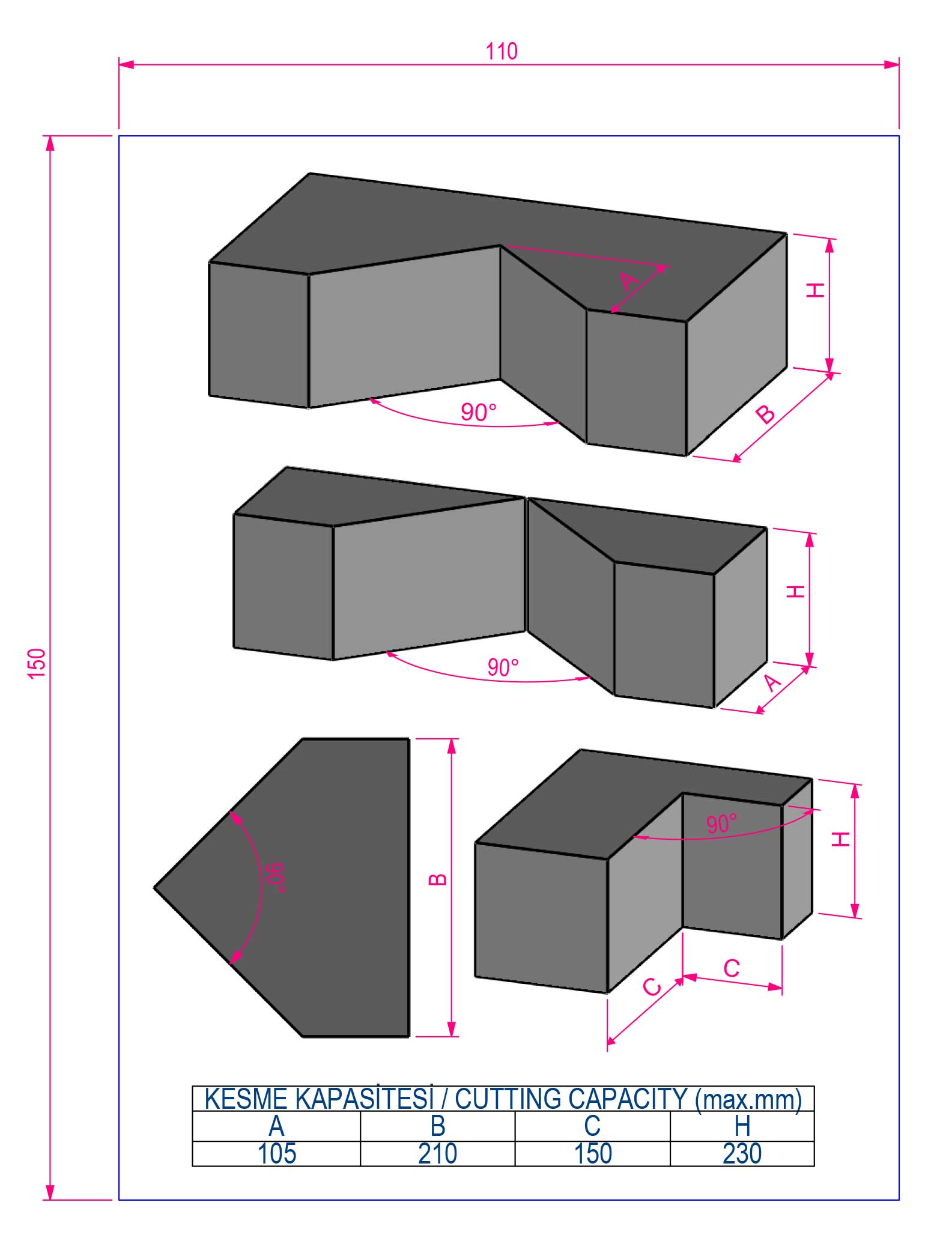

VK 420 is designed for the precise V cutting, arrow cutting and 90° end notching operations with minimal off cut size on PVC and aluminum profiles.
Standart Accessories
- 2 x T.C.T saw blades
- Ø 420 mm
- 2 x Horizontal pneumatic clamps
- Service spanner
- Air gun
Optional Accessories
- Manual MKN 150
- MKN 300 end-stops for V cut operations
- Automatic SKN 300- SKN 450- SKN 600 end stops for V cut operations
- Kit for 90° of notching operations (clamp set
- back fence and 2x KP 120 rollers)
- Additional saw blade Ø 420 mm
- 1 x vertical clamp
General Features
- Machine is constructed to minimize the off-cut size
- Fully protected of working area by means of safety cover.
- Hydro-pneumatic V sawing head infinitely adjustable according to the profile
- Manual adjustable of back fence working in T slot mechanism
- Double hand safety operation
- External adjustment of hydro-pneumatic saw blade feeding
- Saw blade spray cooling system
- 90 degree of notching operation (optional)
TECHNICAL SPECIFICATIONS TABLE
2 X 2.2 kW 50/60 Hz
400V 3P
2750 D/dak.RPM
D = 420 mm d = 30/32 mm
50 Lt/dak Lt/min
6-8 BAR
W= 89 L= 115 H= 186
410 kg
