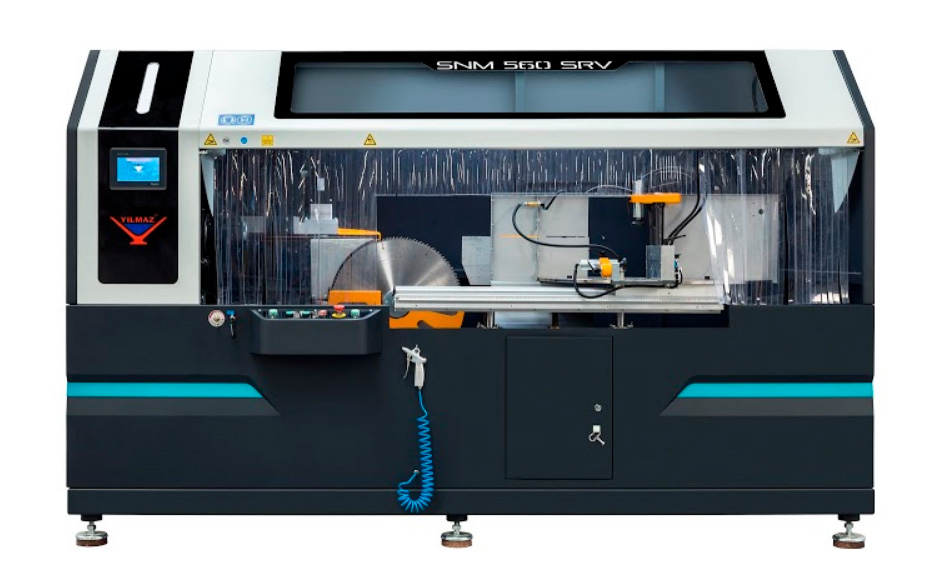

SNM 560M

Aluminium Facade Notching Machine Manual

SNM 560 M Saw Notching Machine is designed and constructed for variable notching possibilities on the sash, frame, mullion and transom profile combinations for curtain-walls, winter gardens, skylights, and special design processing with the special angles at the profile and surface. The workpiece remains fixed on the working table and only the hydro-pneumatic sawing unit having 2 saw blades slides on the linear guides automatically to perform the notching operation.

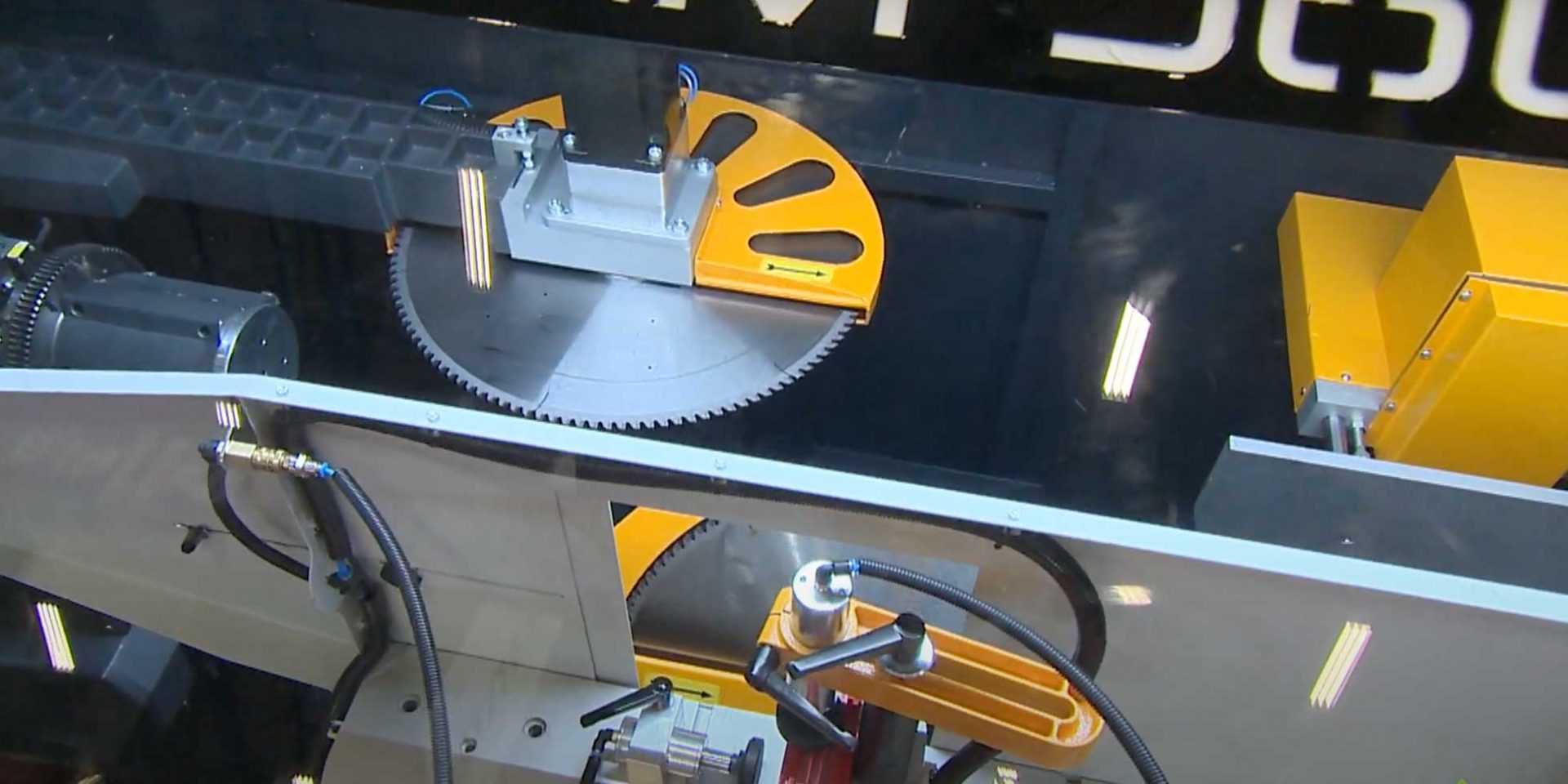

SNM 560 SRV – Servo Controlled Aluminium Facade Notching Machine

Optional Accessories

Laser marker indicating the vertical line of the profile
Profile support arm RS1000
Additional saw blades

General Features

1 x saw unit lower (vertical) with Ø 550 mm dia. and 1 x saw unit upper (horizontal) with Ø 500 mm dia.
Semi-Automatic sawing unit with adjustable feeding speed by hydro-check cylinder.
Angle adjustment of the sawing units and miter adjustment of the profile by hand wheel with digital displays.
Height adjustment of the profile support table by hand wheel with band ruler.
Depth stop adjustment by hand wheel by numerical mechanical display.
4 x pneumatic clamps that allow the profile to be credibly attached at any angle.
Cast iron and steel construction of the body that is strong and lasting.
Pneumatically operated safety cover.
Two-hand safety module.
Very easy saw wear adjustment.
Interior LED lighting.
Chip collection pan.
Spray saw blade lubrication system.
