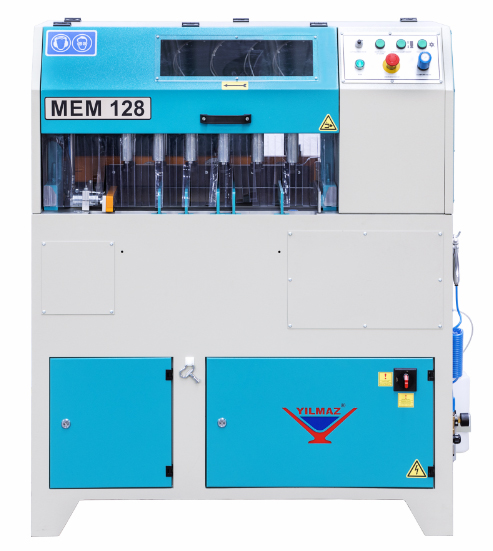

Semi-Automatic Multiple End Milling Machine

Machine which works with motor–belt mechanism, ideal for the serial end milling operations on PVC and aluminum profiles precisely.

High quality end milling operations by means of the adjustable motor speed thanks to the inverter and potentiometer
Practical change of cutter provides ease of operation
End milling of 1 to 6 sash and frame profiles

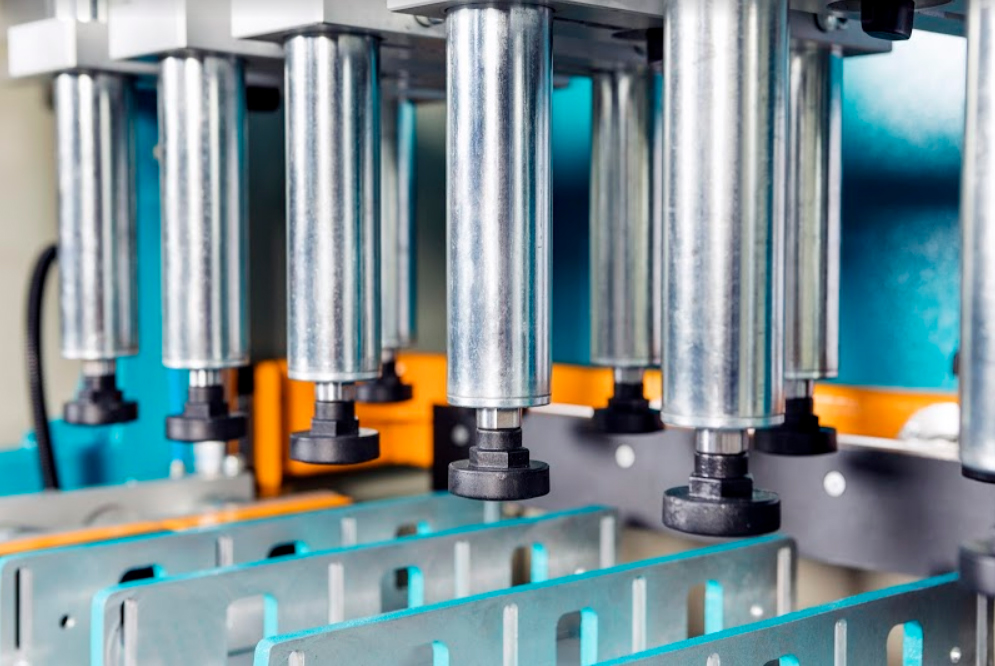

Fixing the workpiece firmly and at square by means of the vertical and horizontal clamps
Safety operations with safety guard
Cutter storage location in front of the machine

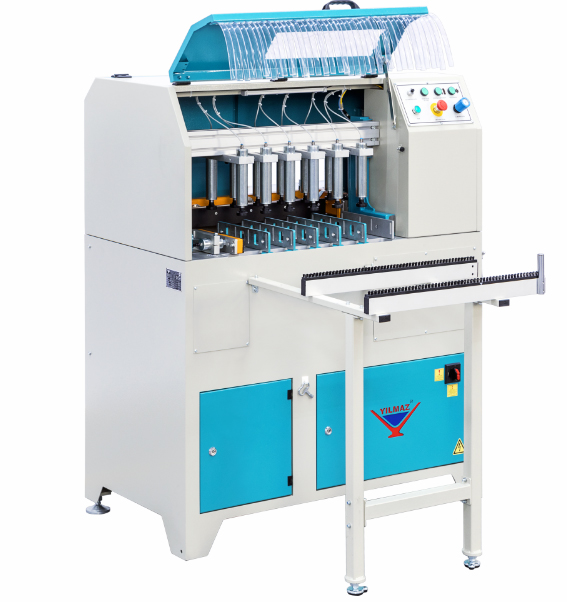

Robust machine stand and support arms in front of the machine to provide end milling of profiles up to 2.5 meters
Practical cutter adjustment by means of the gap parts
Spray tool lubrication system
end milling profile height (H): 210mm
end milling stroke (W): 615 mm
saw blade diameter: Ø 185 mm
tool height: 150 mm
