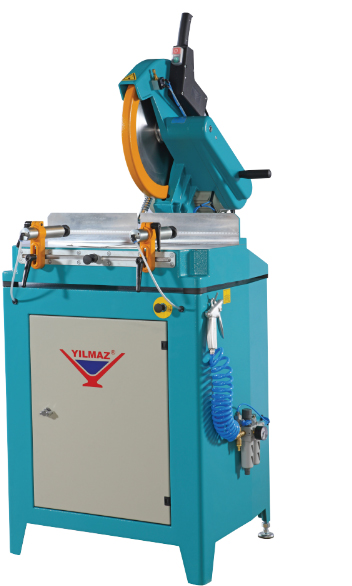

KD-400P
Miter Saw Machine
KD 400P Miter saw cutting machines are designed for straight and angular cutting of PVC, aluminum and wooden profiles.
Standart Accessories
- Ø 400 mm saw blade
- 2 x manual horizontal clamps (KD 400 D)
- 2 x pneumatic horizontal clamps (KD 400 P)
- Air gun (KD 400 P)
Optional Accessories
- Spray saw blade lubrication system
- MKN 300 roller conveyor (3m)
General Features

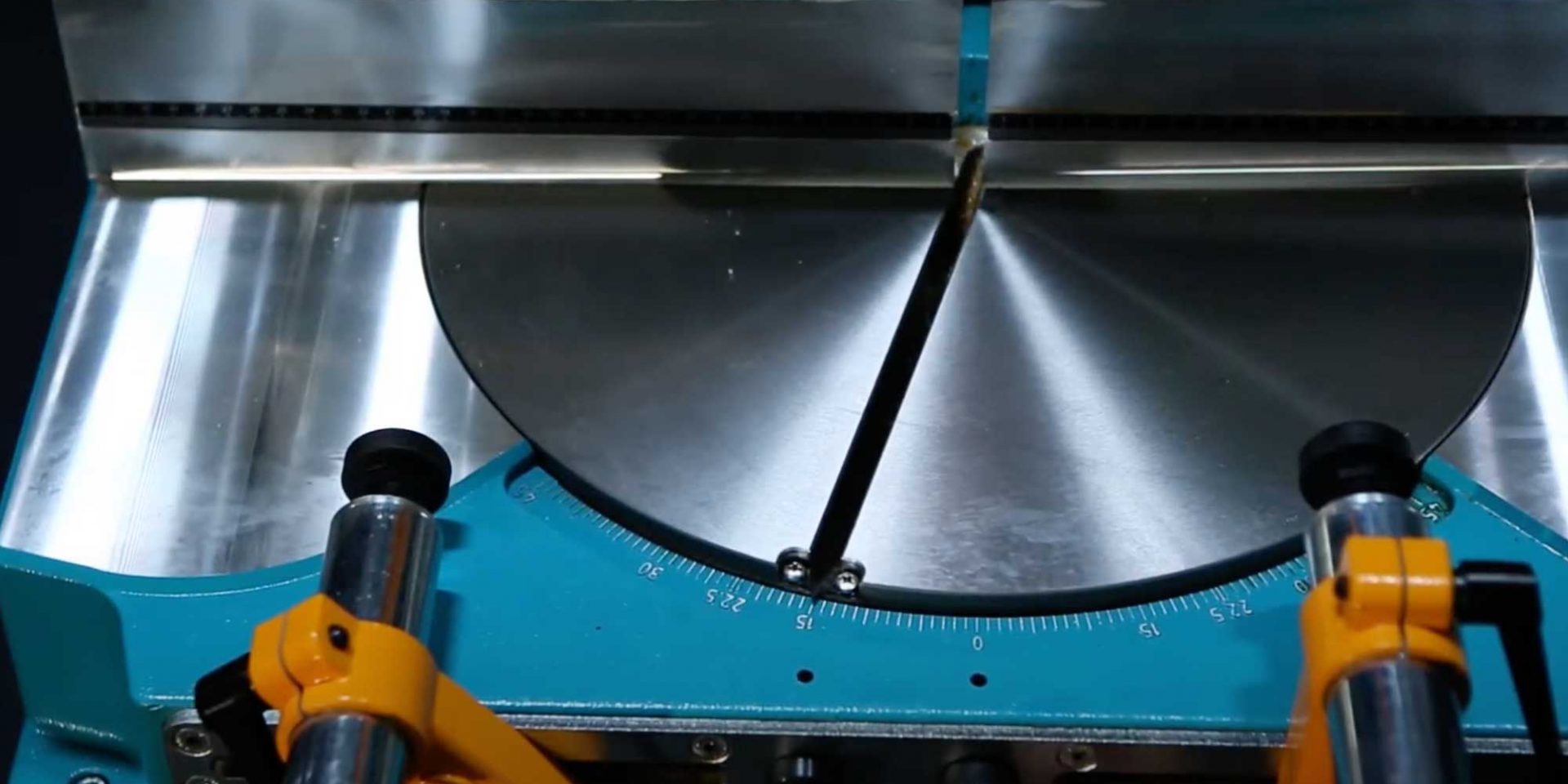

- Location points at 45°-30°-22.5°-15°-0° both left and right
- Pivoting range from 45° left to 60° right infinitely adjustable
- Aluminum construction of the body and machine stand made of steel sheet
- Robust mechanical construction enables the ease of adjustment for the requested cutting angles
TECHNICAL SPECIFICATIONS TABLE
2.2kW~3 50/60Hz
400V AC 3P PE
3000 D/dak. RPM
D:400 d: 30/32 mm
7 Lt/dak. Lt./min.
6-8 Bar
71 x 80 x 149 cm
159 kg
