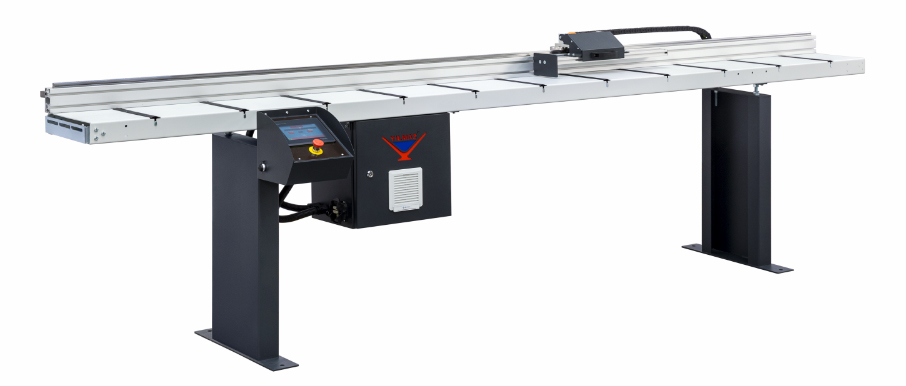

HDL 400-HDL 700
Servo Controlled Automatic Length Stops
It is a servo-controlled length stops which helps to cut the profiles precisely in the required measurements. It easily attaches to your existing saw, drill, punch unites or more. Free your operator from tape measures and manual works.
Optional Accessories
- Barcode printer
- Digital measuring rod (1.5 m)
- Digital measuring rod (2.2 m)
- Digital measuring rod (3.0 m)
General Features
- Turkish
- English
- Spanish
- Russian
- French and Portuguese
- Metric and imperial
- Store up to 50 different lengths
- Manual or automatic operation features
- Easy cutting lists transfer in CSV format with SD card
- 7’’ HMI colored touch screen monitor
- Preparing cutting lists manually
- Making changes on the cutting lists by the screen
- Technical support with remote access connection via laptop
- Thank to the demount structure
- it needs the min. stocking area

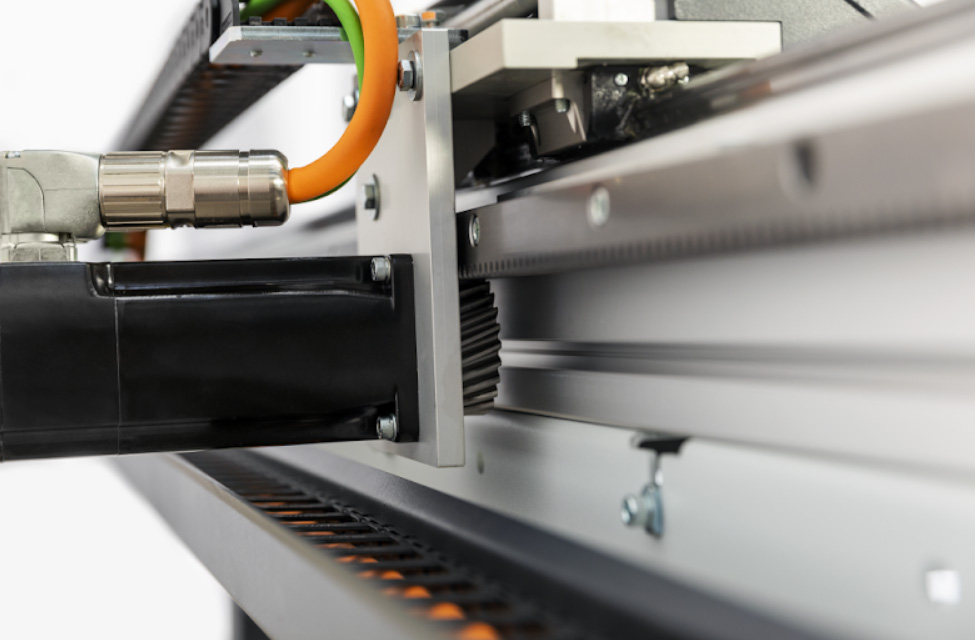

- Rack and pinion drive mechanism and rigid steel of construction body provide a repeatable cutting accuracy of +/- .008” (0.2 mm) providing superior pushing force for heaviest jobs
- Adapts to handsaw
- double or single miter saws
- drills
- ironworkers
- chop saws and more
- Pieces are cut in the order according to the measurement data that is sent from the digital measuring rod (1.5 m- 2.2 m- 3.0 m) (optional)
