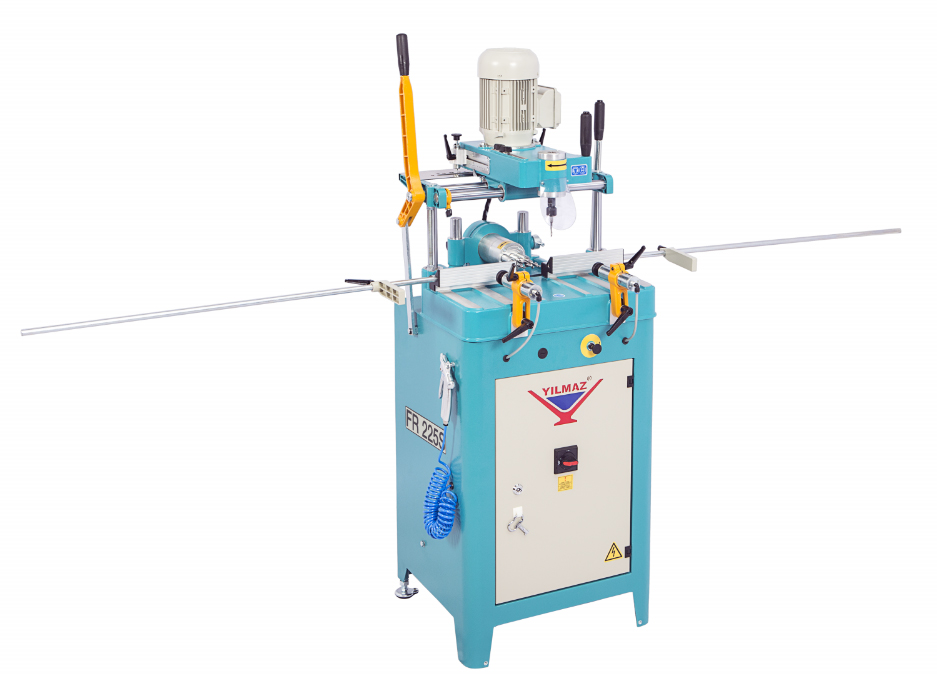

FR-225S
Template Copy Router with Triple Hole Drill
It is used for the processing of slots for locks, drilling handles, hinges, espagnolette and barrel holes and opening water drain slot on PVC and aluminum profiles up to 3 mm of thickness.
Standart Accessories
- Spray tool lubrication system
- Ø5 router bit

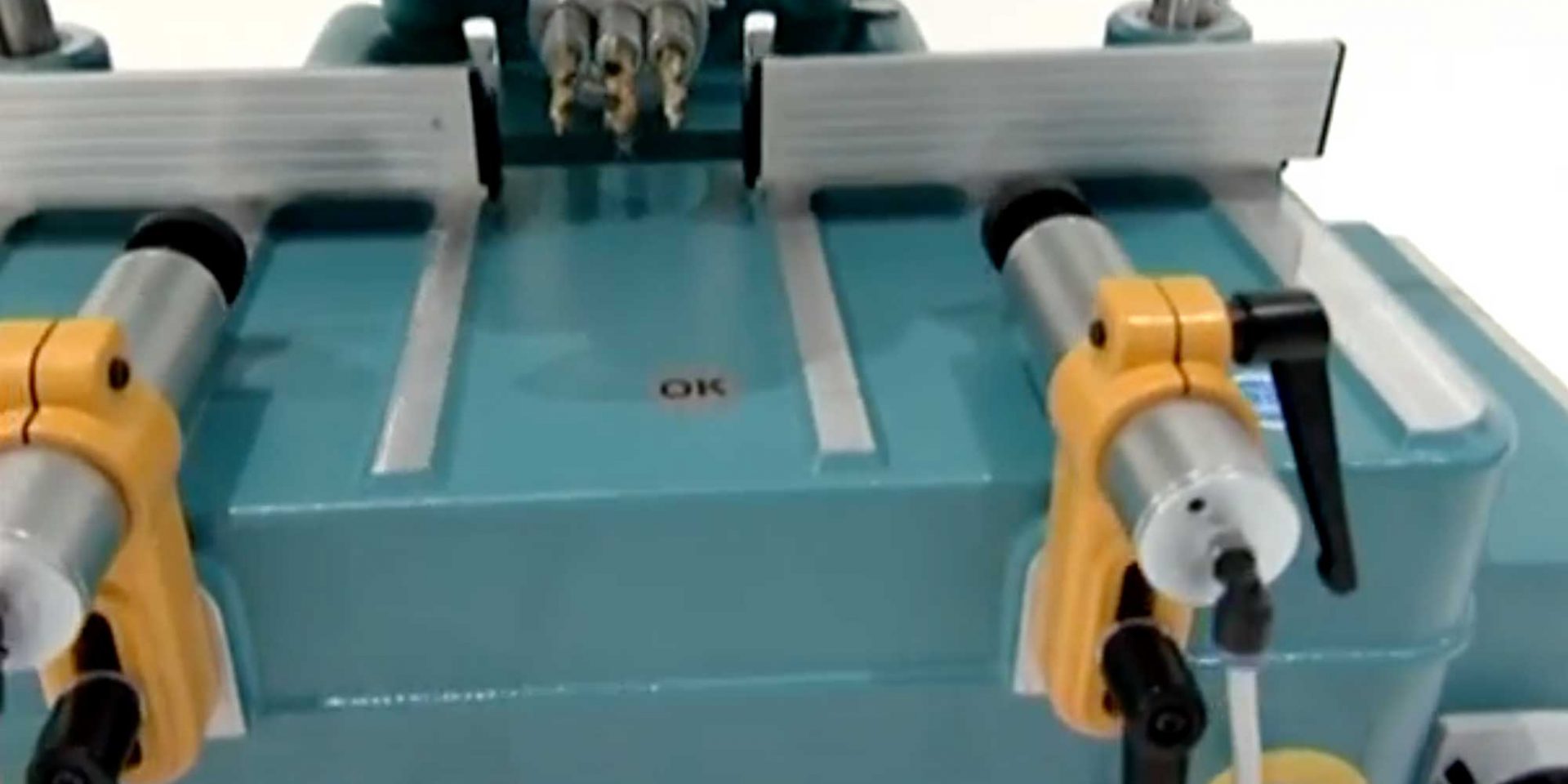

- Equipped with tools for triple drilling mechanism (2x Ø 10
- 1x Ø 13mm)
- 2x left and right profile stops
- 2x pneumatic horizontal clamps
- Air gun
Optional Accessories
- Additional router bit
- Special copy template
- MA 240 centring apparatus
- MKN 150 roller conveyor
General Features
- Opening locks
- drilling handles
- hinges
- espagnolette holes etc. on PVC and aluminum profiles
- Cast aluminum structure
- Corrosion proof bearing shaft
- Robust machine stand constructed from steel sheet
- Manual Triple Hole Drilling Mechanism
- Max clamping capacity: H140 x W140 mm
- Equipped with Ø5 mm of cutter tool
TECHNICAL SPECIFICATIONS TABLE
2x750W 50~60 Hz
400 V
14000 D/min. RPM
5 Lt/dak
6~8 Bar
64 x 80 x 149 cm
136 kg
