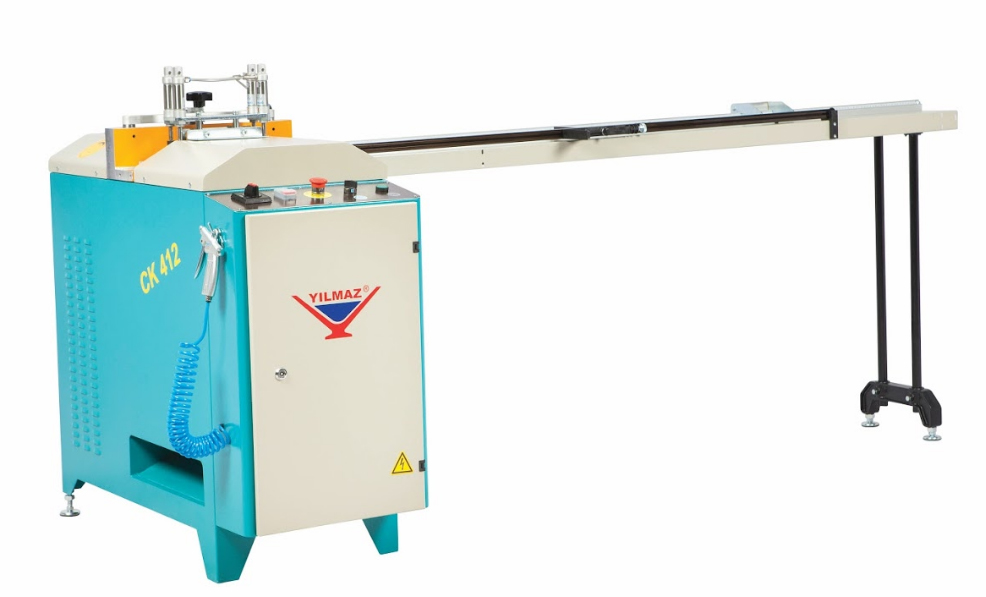

CK 412

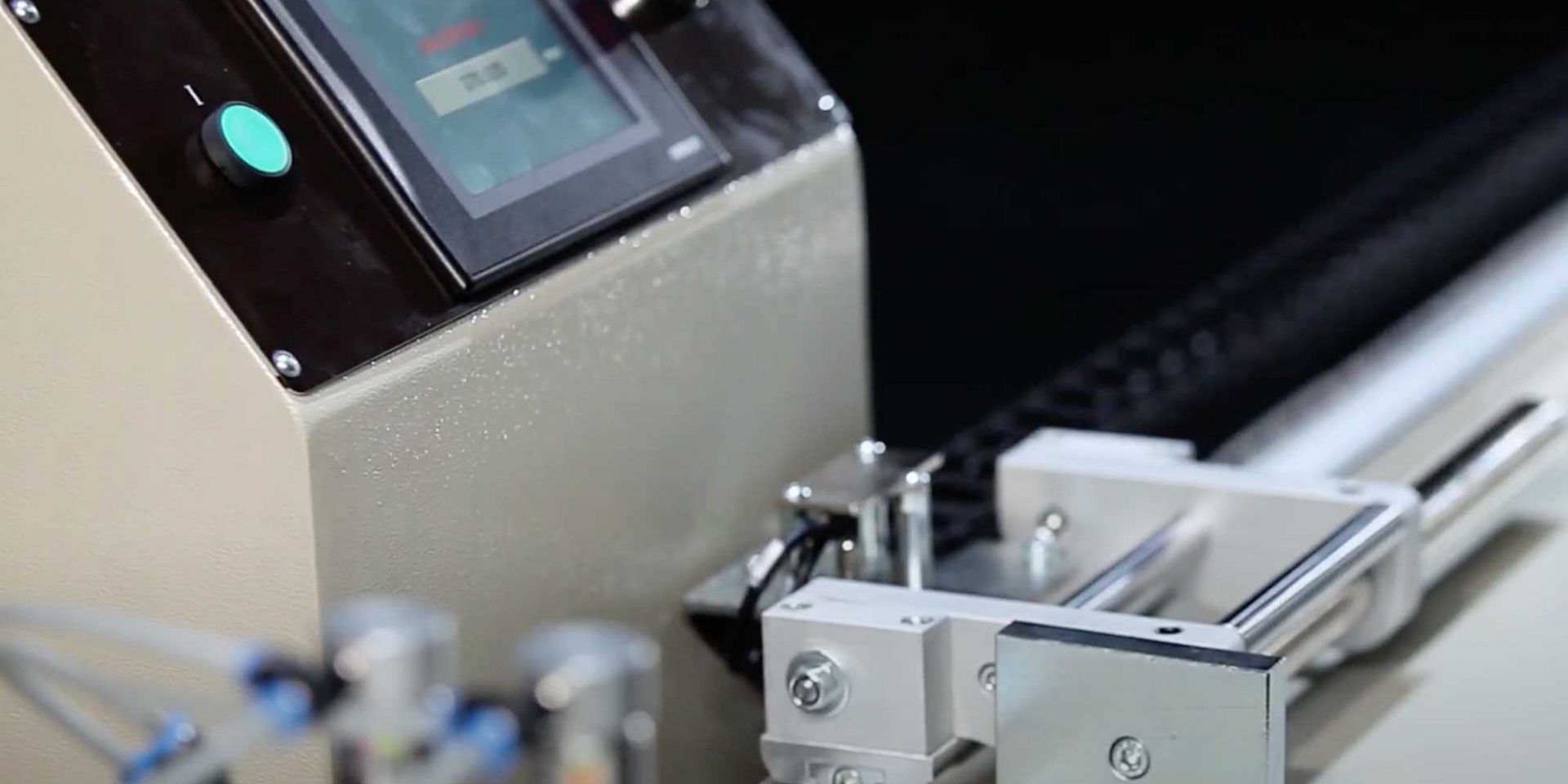

PVC Glazing Bead Saw
CK 412 is an automatically operating cutting machine designed for 45 ° cutting of PVC glazing bead profiles.
Standart Accessories
- 1x Ø 200 and 1x Ø 103 mm saw blades
- KN 152 roller conveyor
- Air gun
Optional Accessories
- Electrical pedal
- regulator & monometer for fine adjustment of the vertical clamps
- Mols for special glazing beads
- Additional saw blades
- CK 412 & SKN 301 automation kit (Digital roller conveyor with automatic 3 m)
- CK 412 & SKN 601 automation kit (Digital roller conveyor with automatic 6 m)
- SKN 300
- SKN 451
- SKN 600 conveyor (with -0410 connection kit)
- SKN 301
- SKN 451
- SKN 601 conveyor (full integrated)
General Features
- Adjustable saw blade feeding speed
- Pneumatic saw feed by pushing button
- Equipped with 2x pneumatic vertical clamps
- Automatic return to start point of the process
- Twin blade design
- Ability to cut 8 different glazing bead profiles without a mould by using mechanical memory
TECHNICAL SPECIFICATIONS TABLE
1200 W x2 50~60 Hz
400V AC
3000 D/min RPM
D1:103 mm D2:200 mm d:30-32 mm
35 Lt/min
6-8 BAR
54x113x124 cm
168 kg
