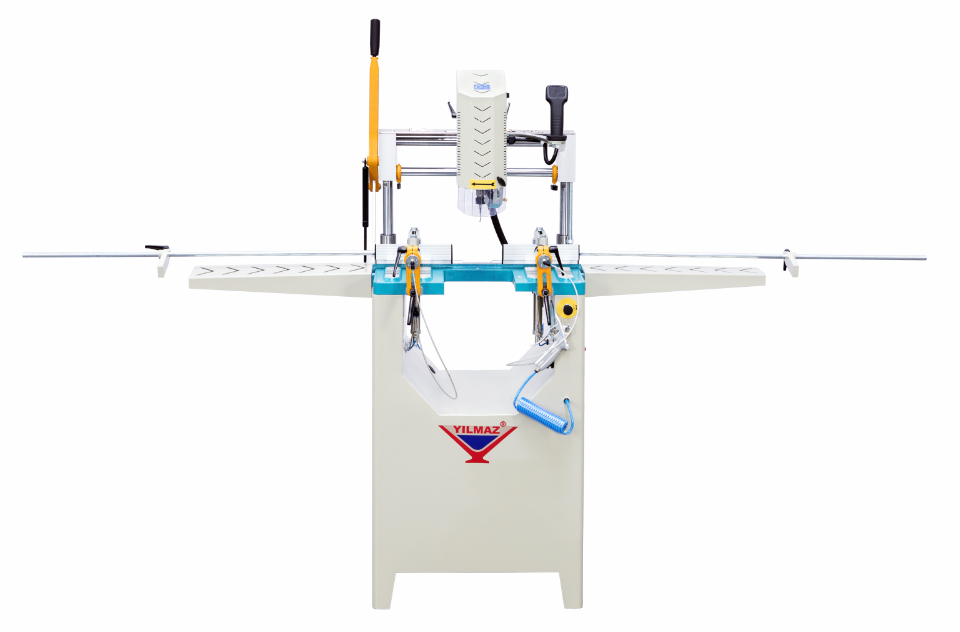

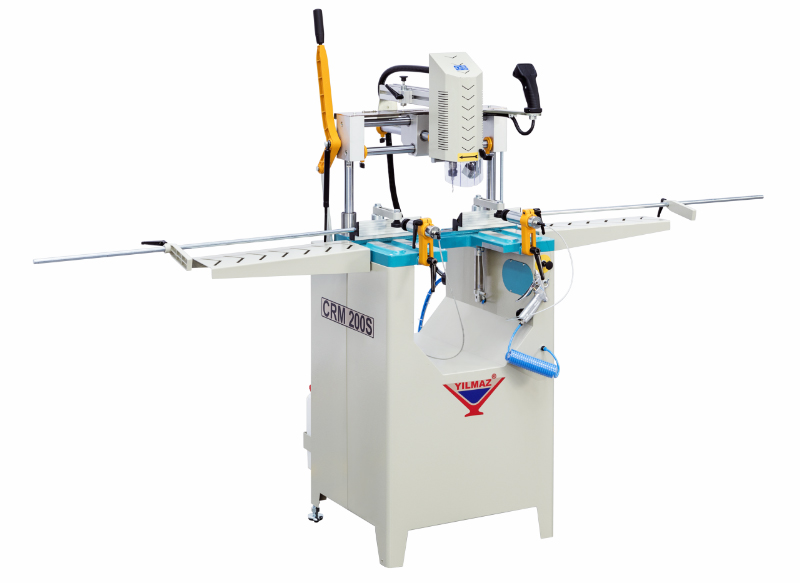

CRM-200S

Template Copy Router Machine

It is used for the processing of slots for locks, drilling handles, triple, hinges, espagnolette holes and opening water drain slot on PVC and aluminium profiles.

Standart Accessories

Ø 5mm x L: 80mm of router bit
Air gun
2x profile stops both left and right
Spray tool lubrication system
2x horizontal clamps
2x vertical clamps

Optional Accessories

Additional router bits
Special copy templates

General Features

Copy fitting operates manually and the figures on the template are machined at 1:1 ratio
The aluminium profiles up to 3 mm of wall thickness can be machined with a strong spindle motor
The cutting fluid controlled with a joystick is sprayed to the milling spot
Slots in varied lengths and widths can be opened without using the copy milling template
The length of the water drain slot is adjustable on the template
Copy milling motor is directly controlled via joystick
Reference stops at 2 sides of the milling machine
Standard equipped with inlet-outlet conveyor
Ergonomic hand control unit
Clamping capacity: W max.:180
W min.:10
H max:135
H min.: 20 mm
