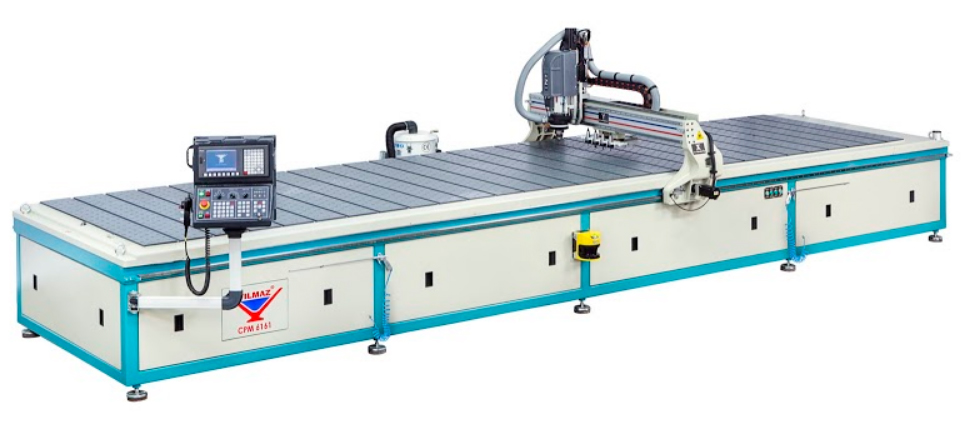

CPM-6161

Double Station Composite Panel Processing Machine

3-axis CNC controlled CPM 6161 machine featured with double station table (2 pc. x 3200 mm) is ideal for machining any kind of aluminium composite panel, aluminium sheets up to 4 mm of thickness, flexy panels, laminate plates etc. commercially available.

Optional Accessories

Additional cutters
Additional ISO 30 tool holders
Additional collets
Additional chip removal extractor with 100 lt. of tank capacity

General Features

Equipped with the automatic vacuum system concentrating the suction on the required area
Uninterrupted machining property by means of the double station table
With a processing area of 1600 x 6650 mm or 2 pc. of 1600 x 3200 mm
Z axis heat compensation system that adjusts the Z position of the cutter bit automatically considering to elongation on the spindle because of the thermal changes. (Patented)
Solid steel construction of the body and dynamic performance gantry
Application of special cutting operations with minimum scrap by YILMAZ CAM software
High precision HSD spindle and internationally recognized components
Minimum tool change time with 5 station automatic tool changer fixed on the gantry
Vortex chip removal head & extractor that cleans all the chips from the work plate
Pneumatic pop-up stops enable you to locate the work plate accurately
Air cushioning system to move the big size of the plate on the table easily
Specially designed work table and powerful vacuum system to hold
Integrated tool length sensor ensures precise tool length measurements
Optimum operational safety guaranteed by 3-zone field scanner system
Multi language support (Turkish and English)
PLC controlled tool cooling system
Control panel with color display for CNC control
Hand held controller allow you to prove the job before running at speed
Easy program transfer with USB memory stick
Low maintenance with automatic central
Lubrication Technical support with remote access
